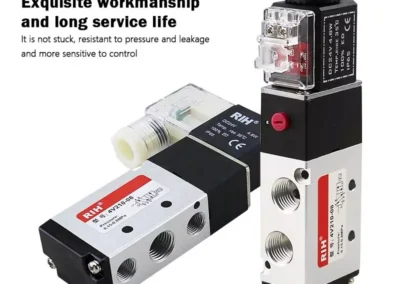

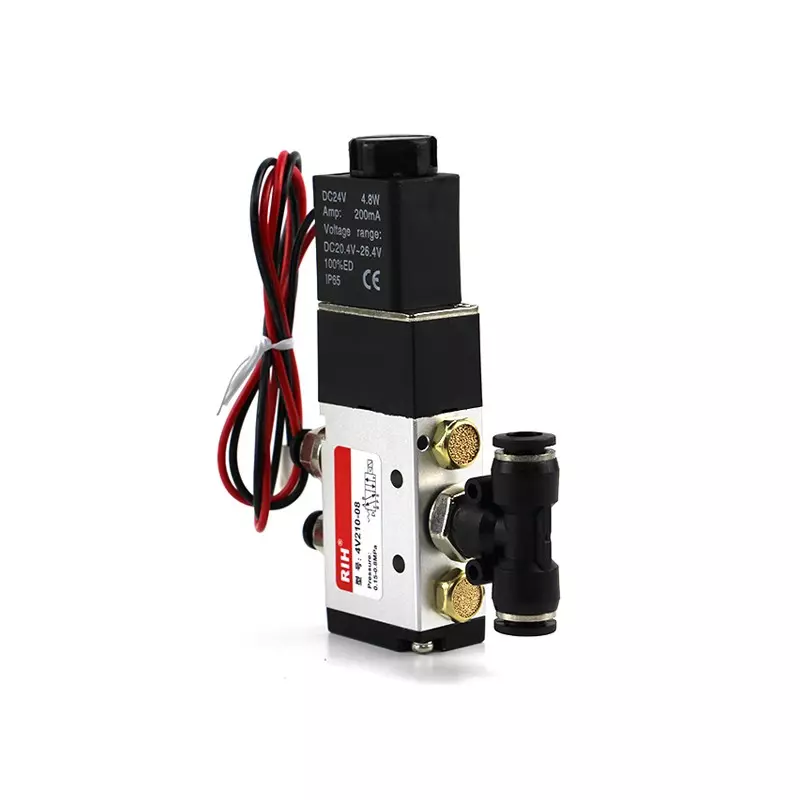

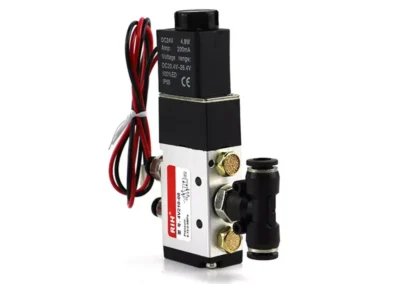

Pneumatic Solenoid Valve
Pneumatic Solenoid Valve Manufacturers
Pneumatic Solenoid Valve Suppliers
Fluid:Air
Action:Intemally piloted acting type
Valve type:2/3Way/2/5Way/3/5Way
Operating pressure:1.5~8.0kgf/cm²
Proof pressure:10.5kgf/cm²
Ambient & fluid temperature:5~60°C
Voltage range:±10%
Power consumption:AC4.5W DC3.0W
Insulation grade:F grade
Protection:IP65(DIN 40050)
Connection:Lead wire type or teminal type
Max.frequency:5cycle/sec
Body:Aluminum alloy
Seal:NBR
Effective area(mm²):7mm²(CV=0.4) / 10mm²(CV=0.56) / 14mm²(CV=0.78) / 12mm²(CV=0.40) / 16mm²(CV=0.78) / 12mm²(CV=0.67)
